Practice Free HPE0-S59 Exam Online Questions
Your customer plans to add four HPE Synergy frames to an existing management ring Ail installed frames are equipped with two 2-port FLM modules, while new frames will be equipped with 4-port FLM modules.
Which statement about mixing different FLM modules is true?
- A . Existing 2-port FLM modules must be replaced with 4-port FLM modules
- B . A management ring can contain mixed frame link module configurations
- C . A management ring with mixed FLM modules cannot have more than 12 frames
- D . Mixing different FLM modules is allowed if all of them have the same firmware version
B
Explanation:
In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.
Reference: HPE Synergy Management Guide
Your customer plans to deploy ESXi systems to HPE Synergy and HPE ProLiant servers using HPE OneView for VMware vCenter Server.
Which statement about HPE OneView for VMware vCenter Server functionality is true for this environment?
- A . HPE ProLiant servers need an HPE OneView for VMware vCenter Server license for full functionality
- B . Individual systems can be added to HPE OneView for VMware vCenter Server through an ILO management processor
- C . HPE Synergy requires HPE Composer 2 for full functionality of HPE OneView for VMware vCenter Server
- D . Only systems managed using HPE Oneview can use HPE Oneview for VMware vCenter Server functionalities
B
Explanation:
HPE OneView for VMware vCenter Server provides integrated management and monitoring capabilities for systems managed by HPE OneView. This means that to leverage the full functionality of HPE OneView for VMware vCenter Server, the systems (both HPE Synergy and HPE ProLiant servers) must be managed through HPE OneView. This integration allows for comprehensive infrastructure management directly from the VMware vCenter interface.
Reference: HPE OneView for VMware vCenter Server User Guide
Your customer plans to deploy a VMware ESXi with HPE Synergy platform. They plan to use Distributed Switches and DRS cluster
You are preparing a proposal with the following components:
– HPE Synergy frame with ten HPE Synergy 480 Gen10 Plus compute modules
– two HPE Virtual Connect SE 100Gb F32 Modules for Synergy
– an appropriate number of the vSphere Standard licenses for each compute node
– one HPE D3940 Storage Modules with 40 SSDs
– all required cables and options
Which statement about this proposal is true?
- A . One HPE Virtual Connect SE 100Gb F32 Module for Synergy should be replaced with 50GD/S ILM
- B . vSphere Standard licenses should be replaced with Enterprise Pius licenses to enable requested features
- C . 2 additional HPE Synergy 480 Gen10 Plus compute modules can be added to this setup
- D . 20 SSD drives should be removed from this setup, as D3940 supports only 20 SSD or SAS drive.
B
Explanation:
The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer’s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.
Reference: VMware vSphere Licensing Guide

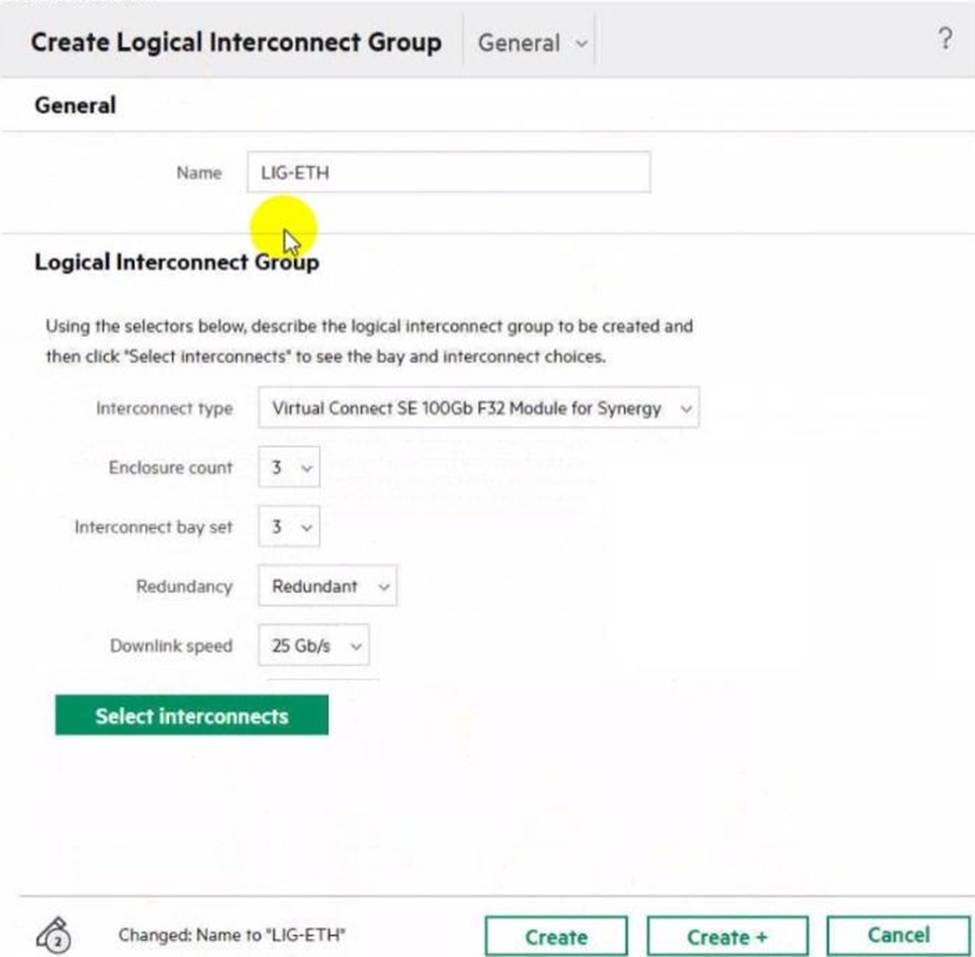

Refer to the exhibit.
Which statement about this logical interconnect group is true?
- A . The master modules are located in the interconnect bays 2 and 5
- B . For the given downlink speed, the maximum number of frames is reached
- C . Both master modules are located in the same HPE Synergy frame
- D . To use interconnect bay set 3, all compute nodes must be half-height
D
Explanation:
In HPE Synergy configurations, when using interconnect bay set 3, it implies that the compute nodes should be half-height. This is because bay set 3 is typically utilized in configurations where half-height compute nodes are used to ensure proper alignment and connectivity within the Synergy frame.
Reference: HPE Synergy Frame Setup Guide
Your customer has me following HPE Synergy setup
– Three frames fully populated with HPE Synergy 480 Gen10 Plus modules and 25Gb/s downlink speed formulating a single logical enclosure
– Two HPE Virtual Connect SE 100Gb F32 Module for Synergy
– Four HPE Synergy 50Gb interconnect Link Module
– Six HPE Synergy Virtual Connect SE 32Gb FC Modules
The customer needs to add a frame.
Which statement about the expansion of this setup is true?
- A . The additional frame must have HPE Virtual Connect FC modules installed
- B . The customer can grow the existing logical enclosure up to 5 frames
- C . The customer has to create a new logical enclosure for the additional frame
- D . The additional frame cannot have 12Gb SAS connection modules installed
B
Explanation:
HPE Synergy allows scaling of logical enclosures up to 5 frames. Given the current setup of three frames fully populated with HPE Synergy 480 Gen10 Plus modules and other specified components, the customer can add another frame to the existing logical enclosure. This flexibility in scaling ensures that the logical enclosure can be expanded without the need to create a new logical enclosure, provided that the necessary interconnect modules are in place.
Reference: HPE Synergy Planning Guide
You need to configure a RoCE network to enable lossless networking for HPE J2000 Flash Enclosure support.
Which interconnects are required to support this connection? (Select two.)
- A . HPE Virtual Connect SE 40Gb F8 Module for HPE Synergy
- B . HPE Virtual Connect SE 16Gb FC Module for HPE Synergy
- C . HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy
- D . HPE Virtual Connect SE 32Gb FC Module for HPE Synergy
- E . Brocade 16Gb Fibfe Channel SAN Switch Module for HPE Synergy
- F . Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy
AC
Explanation:
To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.
Reference: HPE Synergy Interconnect Modules
Which statement about HPE Superdome Flex firmware updates is true?
- A . RMC CLI can simultaneously update complex firmware for multiple HPE Superdome systems.
- B . RMC CLI is the only tool that can be used to update HPE Persistent Memory firmware.
- C . HPE OneView is the only tool that can be used to perform I/O updates.
- D . HPE SUM is the only tool that can be used to update HPE Persistent Memory firmware.
Your customer plans to manage HPE Primera using HPE Oneview
Which storage management tasks can be completed using HPE OneView for this environment?
- A . CPG management
- B . Volume provisioning
- C . Cache management
- D . Replication setup
B
Explanation:
HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.
Reference: HPE OneView and HPE Primera Integration Guide
Which statement about HPE Apollo 2000 Gen10 Plus platform is true?
- A . It is equipped with HPE Persistent memory by default
- B . It can support a single processor only and up to 4 per chassis
- C . It is fully managed using HPE OneView including all connections
- D . It offers servers with AMD EPYC and Intel Xeon Scalable CPUs
D
Explanation:
The HPE Apollo 2000 Gen10 Plus platform offers flexibility in processor options, supporting both AMD EPYC and Intel Xeon Scalable CPUs. This allows customers to choose the best processor architecture based on their specific workload requirements and performance needs.
Reference: HPE Apollo 2000 Gen10 Plus QuickSpecs
Which statement about manual orchestration during the firmware update is true?
- A . It is supported only for logical enclosures with at least three frames
- B . It provides an ability to select and update one side of the Interconnect topology at a time
- C . It provides the ability to install an older firmware version than currently Installed In the interconnect
- D . It allows all the interconnect modules to be activated manually at the same time.
B
Explanation:
Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availability and minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.
Reference: HPE OneView Firmware Update Guide
