Practice Free H12-891_V1.0-ENU Exam Online Questions

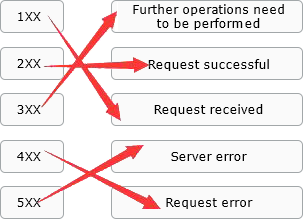

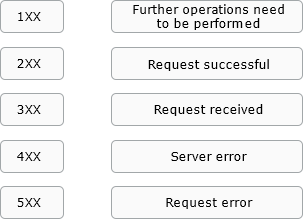

HTTP Status Code (HTTP Status Code) is a 3-digit code of the server response status, which is used to return the operation result to the client. Please match the HTTP status code with the reason phrase.

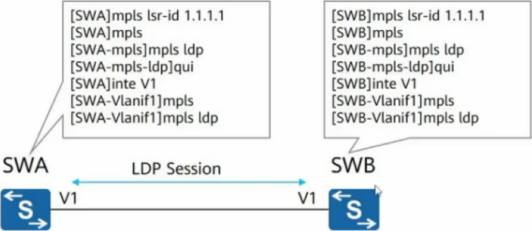

As shown in the figure, MPLSLSP is configured in the network, and the goal is to establish an LDP session between SWA and STB. Which of the following descriptions is correct?
- A . There is no need to enable IPLS on the port
- B . No need to enable MPLS globally
- C . The mpls lsr-id of the two devices cannot be configured to be the same.
- D . Configured correctly
Telemetry data subscription defines the interactive relationship between the data sender and the data acquirer. Which of the following does not belong to the process of Telemetry static subscription?
- A . The analyzer analyzes the sampled data and sends the analysis results to the controller.
- B . After completing the relevant configuration of the GRPC service for a device that supports Telemetry, the collector will deliver the configuration to the device to complete data collection.
- C . The network device reports the collected data to the collector for reception and storage according to the configuration requirements of the controller.
- D . The analyzer reads the sampling data stored by the collector
In SRv6, each time it passes through an SRv6 endpoint node, the SegmentsLeft field is decremented by 1, and the IPv6 destination address information is changed times.
- A . True
- B . False
As shown in the figure, if this packet describes an IPsec packet in tunnel mode, please drag the corresponding header into the correct position and connect.
Which of the following is not a core role in business travel?
- A . Policy control point device
- B . iMaster NCE Campus Controller
- C . Policy enforcement point device
- D . Authentication point equipment
Which of the following intelligent operation and maintenance functions supported by Huawei Cloud Campus Network Solution include? (Multiple choice)
- A . Visually monitor network quality through network health
- B . Ability to analyze network failures based on individual and group problems
- C . Based on big data + AI, provide predictive intelligent tuning capabilities
- D . Based on Telemetry technology, monitor the network quality on the wireless side from three dimensions: AP, radio frequency and user.
The service quality problems faced by traditional networks are mainly caused by congestion. The impact of network congestion on services can be reduced through congestion avoidance and congestion management. Which of the following descriptions are correct? (Multiple choice)
- A . Congestion avoidance function can be implemented through tail drop or TRED
- B . Congestion management uses queue technology to cache messages in different queues, group different queues and apply scheduling algorithms to achieve differentiated processing of messages of different priorities.
- C . Congestion avoidance refers to a flow control mechanism that monitors the usage of network resources (such as queues or memory buffers), proactively discards packets when congestion occurs or tends to intensify, and adjusts network traffic to relieve network overload.
- D . Queue scheduling algorithms include WFQ, SP and WRR, etc.
VXLAN is based on UDP encapsulation, which encapsulates Ethernet data frames on UDP in IP packets, so it is called MAC in UDP encapsulation.
- A . True
- B . False

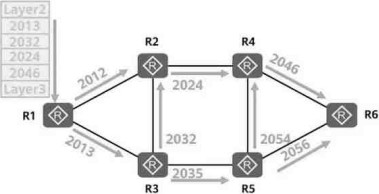

All routers in a network enable SR-MPLS, and R1 encapsulates the label information of a data packet as shown in the figure. Which of the following MPLS labels does the data packet carry when sent from R2 to R4?
- A . 2032
- B . 2024
- C . 2046
- D . No label
