Practice Free D-NWG-FN-23 Exam Online Questions
Refer to the output.
A technician implements a new N-Series switch and connects it to another N-Series switch with OSPF already configured. The OSPF neighbor does not show up after 5 minutes of waiting.
What is causing the issue?
- A . A different configured routing protocol is preventing the neighbor relationship.
- B . A hello interval mismatch is occurring.
- C . A Layer 2 VPN service is running on the other switch.
- D . A virtual link for RIP has been configured on the other switch.
A customer is using the following subnets in their environment:
– Desktops 192.168.1.0/24
– Servers192.168.2.0/24
– Printers 192.168.7.0/24
– DMZ 172.16.10.0/24
The customer has run out of IP space in their desktop subnet. More IPs for desktops must be provided with the least disruptive change to the environment.
Which desktop subnet meets the requirements?
- A . 192.168.6.0/24
- B . 192.168.2.0/23
- C . 192.168.4.0/23
- D . 192.168.0.0/23
What are the default credentials for the Dell EMC OpenManage Network Manager?
- A . Username = admin | Password = admin
- B . Username = root | Password = root
- C . Username = root | Password = calvin
- D . Username = admin | Password = password
A network administrator wants servers to avoid spanning-tree convergence immediately after connecting to a leaf switch.
Which spanning-tree feature would allow this?
- A . spanning-tree vlan priority 0
- B . spanning-tree port-type disabled
- C . spanning-tree port-priority 0
- D . spanning-tree port-type edge
Which Ethernet frame forwarding method works best in networks with intermittent connectivity problems?
- A . Store-and-forward
- B . Cut-through
- C . Unicast
- D . Fragment-free
A technician is using Telnet to access an N2024P. Connections are being terminated after 10 minutes of inactivity.
Which action should the technician perform to extend the amount of allowed inactivity time?
- A . console(config)#line telnet
console(config-telnet)#exec-timeout 150 0 - B . console(config)#line telnet
console(config-telnet)#keepalive enable - C . console(config)#line vty 0 9
console(config-vty) #keepalive enable - D . console(config)#line vty 0 9
console(config-telnet)#exec-timeout 150 0

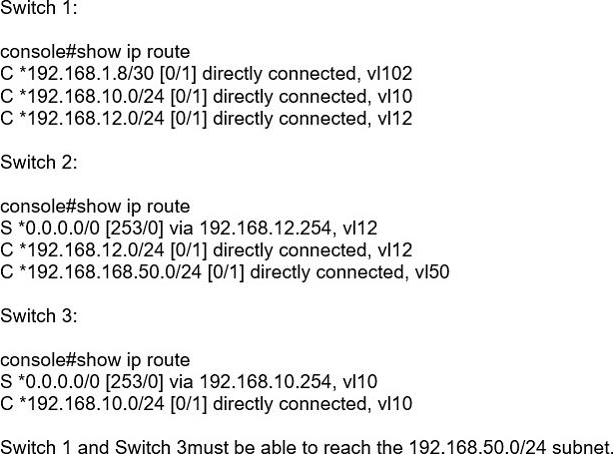

Refer to the exhibit and output.
Which change should be made to meet this requirement?
- A . On switch 1 add a static route to 192.168.50.0/24 with a next hop of 192.168.10.1.
On switch 3 add a static route to 192.168.50.0/24 with a next hop of 192.168.12.254. - B . On switch 1 add a static route to 192.168.50.0/24 with a next hop of 192.168.12.1.
- C . On switch 3 add a static route to 192.168.50.0/24 with a next hop of 192.168.12.254.
- D . On switch 2 add a static route to 192.168.50.0/24 with a next hop of 192.168.10.254.
On switch 3 add a static route to 192.168.50.0/24 with a next hop of 192.168.12.254.
What are the correct steps to configure a static LAG on a Dell Networking OS10 switch?
- A . interface port-channel 4 channel-group 4 mode passive
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on - B . interface port-channel 4 channel-group 4 mode on
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode passive - C . interface port-channel 4 no shutdown
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on - D . interface port-channel 4 no shutdown
interface range ethernet 1/1/14-1/1/15 channel-group 4 mode active
Which command is used to prevent STP learning on a port that is connected to a server?
- A . #able spanning-tree
- B . #spanning-tree security
- C . #spanning-tree portfast
- D . #spanning-tree off
Which Dell EMC Networking M-Series switch has 16 external fixed 1GbE RJ-45 ports and a management console port?
- A . M1000e
- B . M6222
- C . M6348
- D . M8024-K
