Practice Free D-NWG-FN-23 Exam Online Questions
On Switch A, a static route has been redistributed into OSPF.
Which type of OSPF router will this process make Switch A?
- A . Autonomous System Boundary Router (ASBR)
- B . Designated router (DR)
- C . Area Border Router (ABR)
- D . Backbone Router (BR)
Which switching technology can help reduce the size of broadcast domains?
- A . LAG
- B . STP
- C . ISL
- D . VLANs
In IPv4, what is the proper conversion from binary to decimal for the number 11010010?
- A . 202
- B . 210
- C . 226
- D . 258
A technician applies an IPv4 address to the Out-Of-Band/Management port of a Dell NSeries switch.
Which step allows the technician to use the web interface?
- A . Update the Switch Firmware to at least version 6.3.x.x.
- B . use the default Dell “root” username and “calvin” password.
- C . Manually set a username and password via the CLI.
- D . Configure an “enable password” on the Dell N-Series switch.
A VLAN has been configured to have an IPv6 address and a stateless address autoconfiguration for clients.
Which IPv6 address prefix will the default gateway have on a client?
- A . fd01::/64
- B . fe08::/64
- C . fe80::/64
- D . ff02::/8
What is the dynamically assigned port range in the Transport layer?
- A . 49150 – 65535
- B . 49151 – 65535
- C . 49152 – 65535
- D . 49153 – 65535
Which type of domains are connected by a Layer 2 switch?
- A . Single collision domain and a single broadcast domain
- B . Multiple broadcast domains and multiple collision domains
- C . Multiple collision domains and a single broadcast domain
- D . Single collision domain and multiple broadcast domains
Which three services use UDP for data segment transportation? (Choose three.)
- A . DHCP
- B . TFTP
- C . SMTP
- D . HTTP
- E . RIP
- F . FTP
What is the maximum number of LLDP neighbors supported per system with OS10?
- A . 250
- B . 256
- C . 384
- D . 512

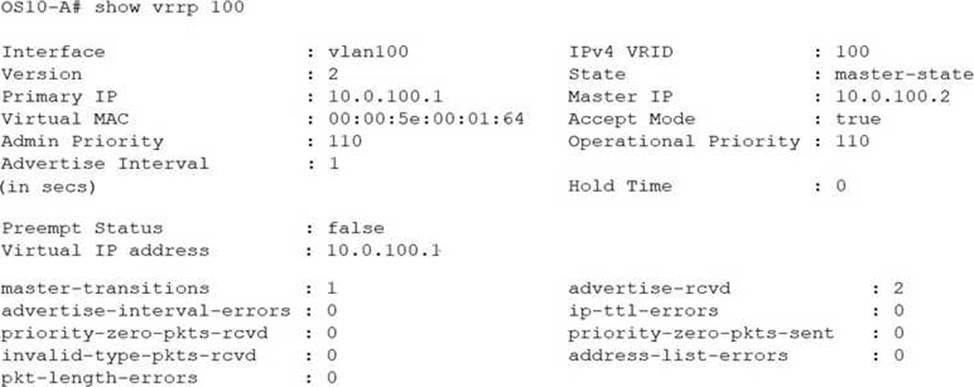

Refer to the exhibit.
What is the VRRP state of OS10-A after a router with a default VRRP admin priority with VRID100 comes online?
- A . master-state
- B . standby-state
- C . backup-state
- D . primary-state
