Practice Free 350-801 Exam Online Questions
What is the purpose of a hybrid Local Gateway?
- A . to handle calls between Webex Calling and Cisco Calling Plans
- B . to handle calls between Webex Calling and Cloud Connected PSTN
- C . to handle calls between Cisco IJCM and Webex Calling
- D . to handle calls between the Public Switched Telephone Network and Webex Calling

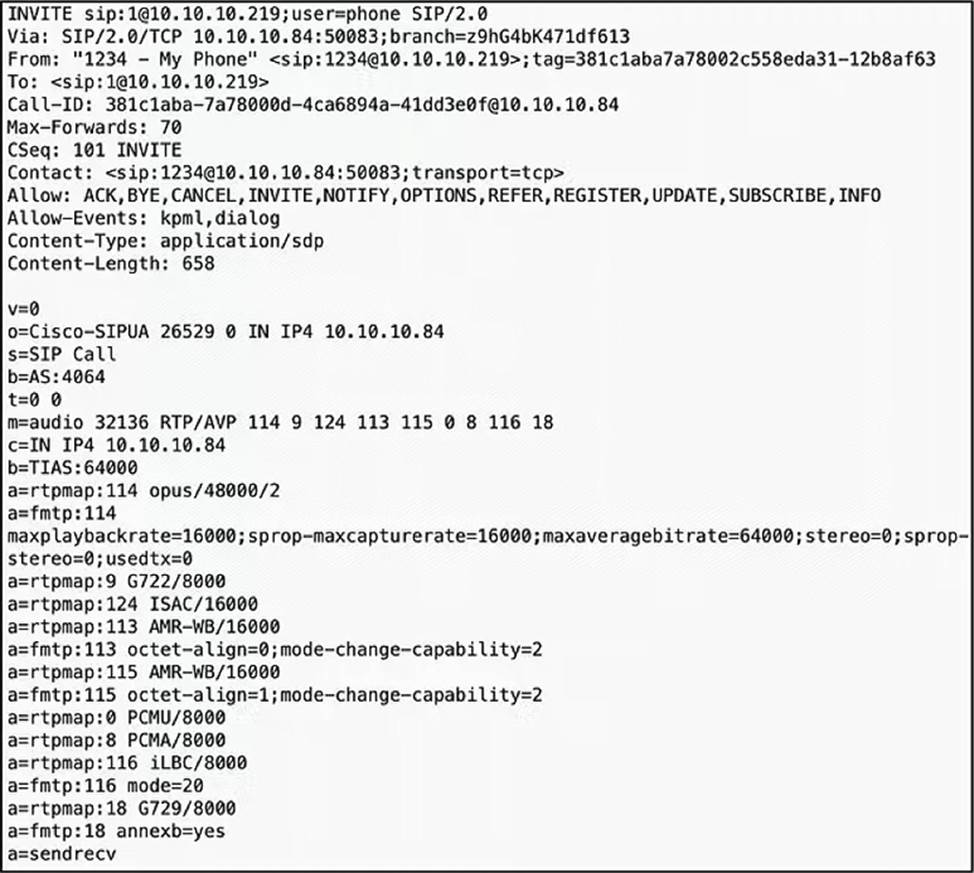

Refer to exhibit.
When a UC Administrator is troubleshooting DTMF negotiated by this SIP INVITE, which two messages are examined next to further troubleshoot the issue? (Choose two.)
- A . REGISTER
- B . SUBSCRIBE
- C . PRACK
- D . NOTIFY
- E . UPDATE
Which value should be changed when each Cisco UCM node does not allow for more than 5000 phones to be registered?
- A . Maximum Number of Registered and Unregistered Devices service parameter on each node
- B . Minimum Number of Phones service parameter on each node
- C . Maximum Number of Registered Devices service parameter on each node
- D . Maximum Number of Phones service parameter on the Publisher
To provide high-quality voice and take advantage of the full voice feature set, which two access layer switches provide support?
- A . Use multiple egress queues to provide priority queuing of RTP voice packet streams and the ability to classify or reclassify traffic and establish a network trust boundary.
- B . Use 802, 1Q trunking and 802.1p for proper treatment of Layer 2 CoS packet marking on ports with phones connected.
- C . Implement IP RTP header compression on the serial Interface to reduce the bandwidth required per voice call on point-to-point links.
- D . Deploy RSVP to improve VoIP QoS only where it can have a positive impact on quality and functionality where there is limited bandwidth and frequent network congestion.
- E . Map audio and video streams of video calls (AF41 and AF42) to a class-based queue with weighted random early detection.
An engineer must enable onboarding of on-premises devices by using activation to a Cisco UCM server The engineer activated the CISCO Device Activation Service and set the default registration method to use the codes.
Which action completes the configuration?
- A . Set Enable Activation Code enterprise parameter to True-
- B . Manually provision new phones that have an activation code requirement
- C . Create a Bulk Administration Tool provisioning template.
- D . Generate 16-digit codes by using the Bilk Administration Tool
A Cisco UCM administrator wants to enable the Self-Provisioning feature for end users.
Which two prerequisites must be met first? (Choose two.)
- A . End users must have a secondary extension.
- B . Cisco Extended Functions service must be running
- C . End users must belong to Standard CCM Admin Users group, the Standard CCM End Users group, and the Standard CCM Self-Provisioning group.
- D . End users must have a primary extension.
- E . End users must be associated to a user profile or feature group template that includes a universal line template and universal device template.
Which option must be used when configuring the Local Gateway for a Cisco Webex Calling trunk?
- A . local authentication
- B . certificate-based
- C . mutual TLS
- D . Auth-based
An engineer wants to manually deploy a CISCO Webex DX80 Video endpoint to a remote user.
Which type of provisioning is configured on the endpoint?
- A . Cisco Unified Border Element
- B . Cisco Unity Connection
- C . Cisco Meeting Server
- D . Edge

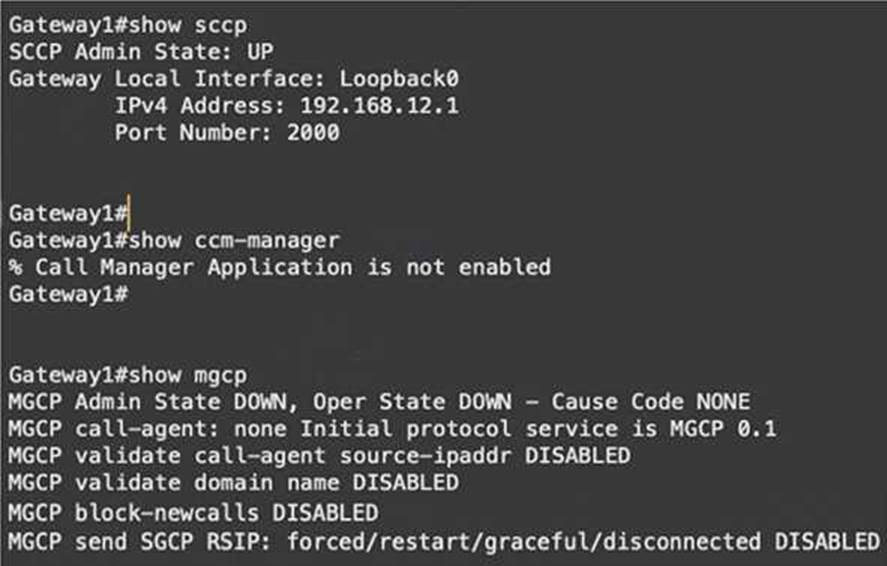

Refer to exhibit.
A collaboration engineer adds an analog gateway to a Cisco UCM cluster. The engineer chooses MGCP over SCCP as the gateway protocol.
Which two actions ensure that the gateway registers? (Choose two.)
- A . Enter "no seep" on the gateway in configuration mode.
- B . Enter "ccm-manager mgcp" on the gateway in configuration mode.
- C . Enter "mgcp" on the gateway in configuration mode.
- D . Enter "ccm-manager config" on the gateway in configuration mode.
- E . Delete and re-add the gateway configuration in Cisco UCM.

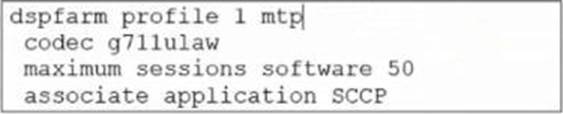

Refer to the Exhibit.
Which command is required to allow this media resource to handle Video Media streams?
- A . maximum sessions hardware 50
- B . video codec h264
- C . codec pass-through
- D . associate application Cisco unified border element
