Practice Free 200-301 Exam Online Questions
Why is a first-hop redundancy protocol implemented?
- A . to protect against default gateway failures
- B . to prevent loops in a network
- C . to enable multiple switches to operate as a single unit
- D . to provide load-sharing for a multilink segment
Which command configures the Cisco WLC to prevent a serial session with the WLC CLI from being automatical togged out?
- A . config sessions maxsessions 0
- B . config sessions timeout 0
- C . config serial timeout 0
- D . config serial timeout 9600
Which two protocols are supported on service-port interfaces? (Choose two.)
- A . RADIUS
- B . TACACS+
- C . SCP
- D . Telnet
- E . SSH
DE
Explanation:
https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-5/configuration-guide/b_cg75/b_cg75_chapter_011110.html

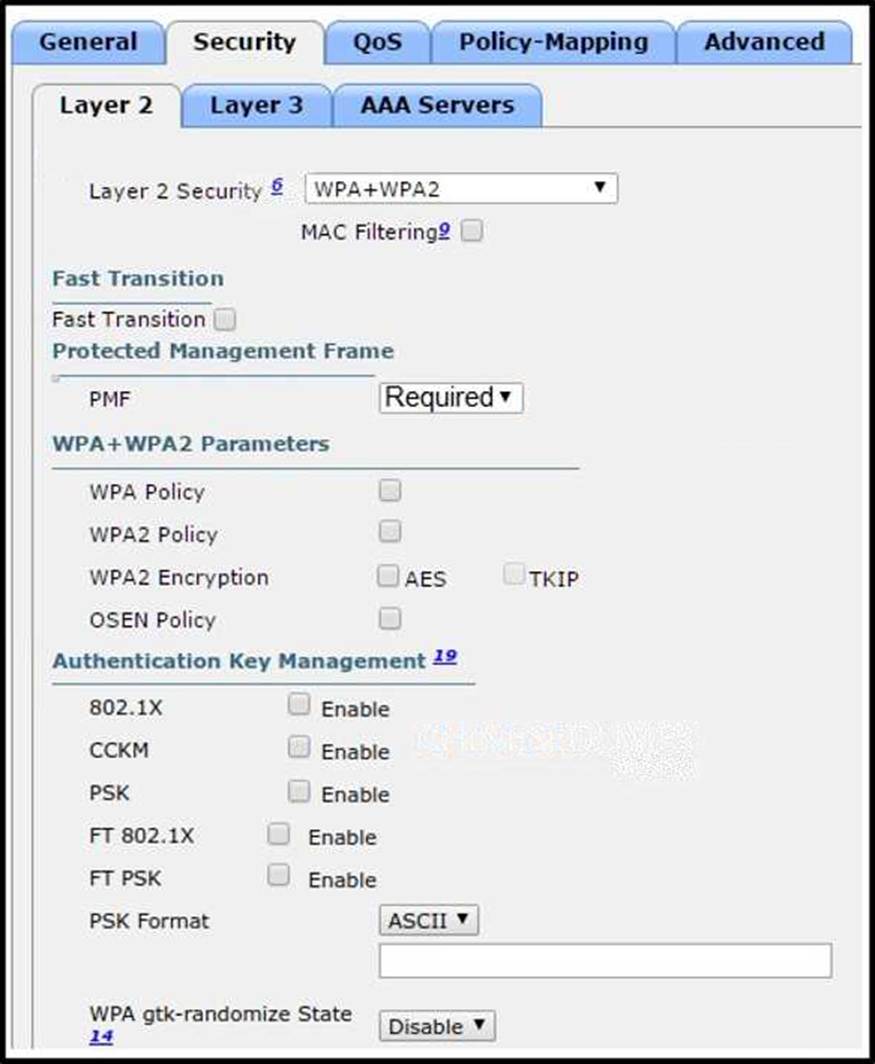

Refer to the exhibit.
The network engineer is configuring a new WLAN and is told to use a setup password for authentication instead of the RADIUS servers.
Which additional set of tasks must the engineer perform to complete the configuration?
- A . Disable PMF Enable PSK Enable 802.1x
- B . Select WPA Policy Enable CCKM Enable PSK
- C . Select WPA Policy Select WPA2 Policy Enable FT PSK
- D . Select WPA2 Policy Disable PMF Enable PSK
Which device tracks the state of active connections in order to make a decision to forward a packet through?
- A . wireless access point
- B . firewall
- C . wireless LAN controller
- D . router
B
Explanation:
Stateful inspection, also known as dynamic packet filtering, is a firewall technology that monitors the state of active connections and uses this information to determine which network packets to allow through the firewall.
What are two benefits of FHRPs? (Choose two.)
- A . They prevent (oops in the Layer 2 network.
- B . They allow encrypted traffic.
- C . They are able to bundle muftlple ports to increase bandwidth
- D . They enable automatic failover of the default gateway.
- E . They allow multiple devices lo serve as a single virtual gateway for clients in the network
DRAG DROP

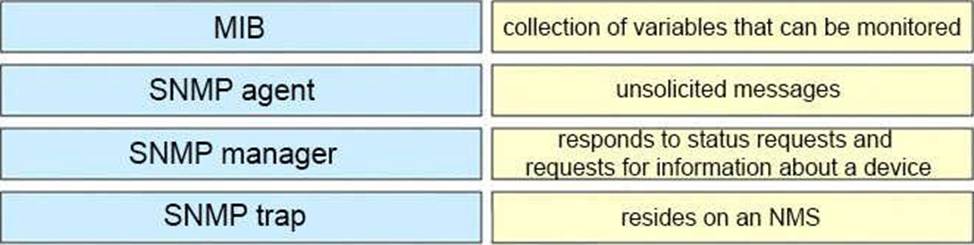

Drag and drop the SNMP components from the left onto the descriptions on the right.
An engineer is configuring a switch port that is connected to a VoIP handset.
Which command must the engineer configure to enable port security with a manually assigned MAC address of abod-bod on voice VLAN 4?
- A . switchport port-security mac-address abcd.abcd.abcd
- B . switchport port-security mac-address abed.abed.abed vlan 4
- C . switchport port-security mac-address sticky abcd.abcd.abcd vlan 4
- D . switchport port-security mac-address abcd.abcd.abcd vlan voice

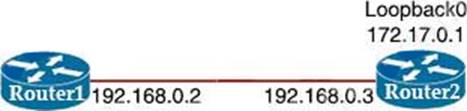

Refer to the exhibit.
The nip server 192.168.0.3 command has been configured on router 1 to make it an NTP client of router 2.
Which command must be configured on router 2 so that it operates in server-only mode and relies only on its internal clock?
- A . Router2(config)#ntp passive
- B . Router2(config)#ntp server 172.17.0.1
- C . Router2(config)#ntp master 4
- D . Router2(config)#ntp server 192.168.0.2
B
Explanation:
• To use internal clock of this router, use any configured IP address in any interface of this router.
What is a function of a Layer 3 switch?
- A . move frames between endpoints limited to IP addresses
- B . transmit broadcast traffic when operating in Layer 3 mode exclusively
- C . forward Ethernet frames between VLANs using only MAC addresses
- D . flood broadcast traffic within a VLAN
