Practice Free 200-301 Exam Online Questions
Which two WAN architecture options help a business scalability and reliability for the network? (Choose two)
- A . asychronous routing
- B . single-homed branches
- C . dual-homed branches
- D . static routing
- E . dynamic routing
Which two WAN architecture options help a business scalability and reliability for the network? (Choose two)
- A . asychronous routing
- B . single-homed branches
- C . dual-homed branches
- D . static routing
- E . dynamic routing
What is the role of the root port in a switched network?
- A . It replaces the designated port when the designated port fails
- B . It is the best path to the root from a nonroot switch.
- C . It replaces the designated port when the root port fails.
- D . It is administratively disabled until a failover occurs.
B
Explanation:
The root port is the port on a nonroot switch that has the lowest cost to reach the root bridge in a switched network. The root bridge is the switch that is elected as the central point of the network by the spanning tree protocol (STP). The root port is responsible for forwarding traffic to the root bridge, and it is always in a forwarding state. The cost of a port is determined by the speed and bandwidth of the link, and the lower the cost, the better the path. If there are multiple paths to the root bridge with the same cost, the switch will choose the one with the lowest bridge ID as the tiebreaker. The root port does not replace or replace any designated port, which is the port that forwards traffic on a network segment. The root port is also not administratively disabled or enabled, but it is dynamically selected by STP1234.
Reference:
1: Solved: STP: Root port vs. designated port – Cisco Community
2: Difference between Root Port and Designated Port – GeeksforGeeks
3: What is a Root Port – Snabay Networking
4: What is a Root Port – omnisecu.com
Which access point mode relies on a centralized controller for management, roaming, and SSID configuration?
- A . repeater mode
- B . autonomous mode
- C . bridge mode
- D . lightweight mode

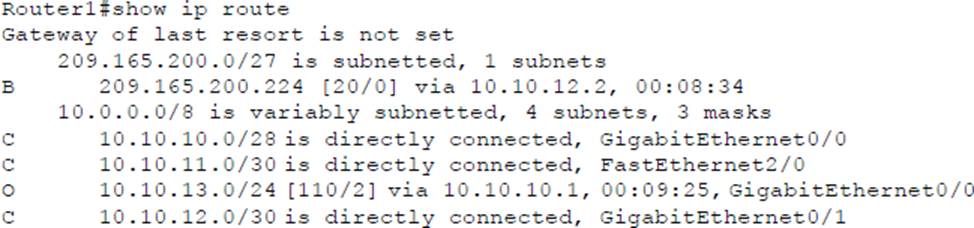

Refer to me exhibit.
Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?
- A . It uses a route that is similar to the destination address
- B . It discards the packets.
- C . It floods packets to all learned next hops.
- D . It Queues the packets waiting for the route to be learned.
What is a function of Cisco Advanced Malware Protection for a Next-Generation IPS?
- A . authorizing potentially compromised wireless traffic
- B . inspecting specific files and file types for malware
- C . authenticating end users
- D . URL filtering
B
Explanation:
AMP gives you real-time blocking of malware and advanced sandboxing, that is backed up by world class global threat intelligence, to provide rapid detection, containment and removal of advanced malware
https://www.cisco.com/c/en/us/products/security/amp-appliances/index.html
Which port type supports the spanning-tree portfast command without additional configuration?
- A . access ports
- B . Layer 3 main Interfaces
- C . Layer 3 suninterfaces
- D . trunk ports
DRAG DROP

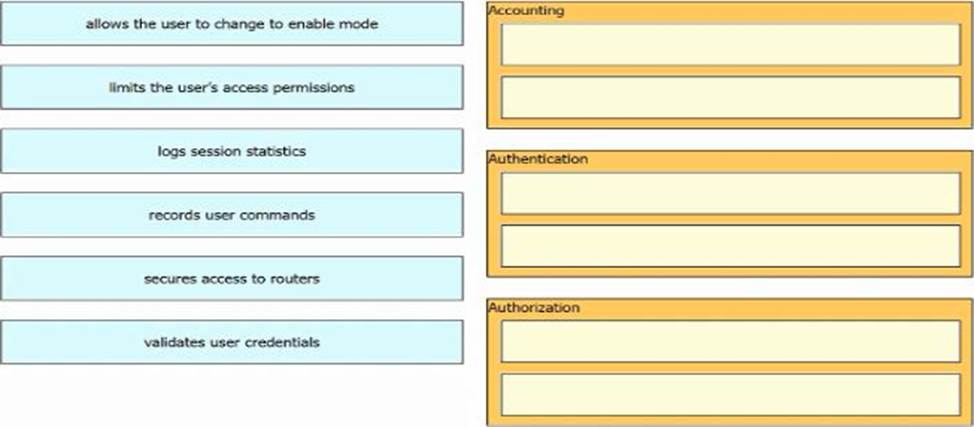

Drag and drop the descriptions of AAA services from the left onto the corresponding services on the right.
DRAG DROP
Drag and drop the configuration management terms from the left onto the descriptions on the right. Not all terms are used.
Which IPv6 address range is suitable for anycast addresses for distributed services such DHCP or DNS?
- A . FF00:1/12
- B . 2001:db8:0234:ca3e::1/128
- C . 2002:db84:3f37:ca98:be05:8/64
- D . FE80::1/10
