Practice Free 200-301 Exam Online Questions
Which resource is able to be shared among virtual machines deployed on the same physical server?
- A . disk
- B . applications
- C . VM configuration file
- D . operating system
Which command on a port enters the forwarding state immediately when a PC is connected to it?
- A . switch(config)#spanning-tree portfast default
- B . switch(config)#spanning-tree portfast bpduguard default
- C . switch(config-if)#spanning-tree portfast trunk
- D . switch(config-if)#no spanning-tree portfast
When implementing a router as a DHCP server, which two features must be configured’? (Choose two)
- A . relay agent information
- B . database agent
- C . address pool
- D . smart-relay
- E . manual bindings
Which two components comprise part of a PKI? (Choose two.)
- A . preshared key that authenticates connections
- B . RSA token
- C . CA that grants certificates
- D . clear-text password that authenticates connections
- E . one or more CRLs
What are two lacts that differentiate optical-fiber cabling from copper cabling? (Choose two.)
- A . It is less expensive when purchasing patch cables.
- B . It has a greater sensitivity to changes in temperature and moisture.
- C . It provides greater throughput options.
- D . It carries signals for longer distances.
- E . It carries electrical current further distances for PoE devices.
When a WLAN with WPA2 PSK is configured in the Wireless LAN Controller GUI which format is supported?
- A . Unicode
- B . base64
- C . decimal
- D . ASCII

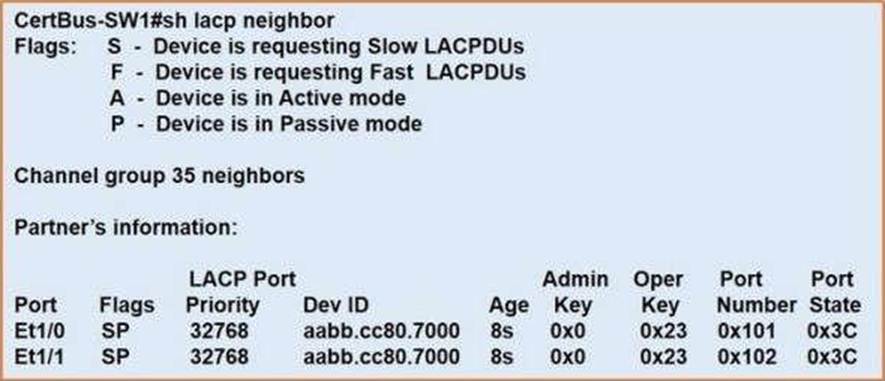

Refer to the exhibit.
Based on the LACP neighbor status, in which mode is the SW1 port channel configured?
- A . passive
- B . mode on
- C . auto
- D . active
D
Explanation:
From the neighbor status, we notice the “Flags” are SP. “P” here means the neighbor is in Passive mode.
In order to create an Etherchannel interface, the (local) SW1 ports should be in Active mode. Moreover, the “Port State” in the exhibit is “0x3c” (which equals to “00111100 in binary format). Bit 3 is “1” which means the ports are synchronizing -> the ports are working so the local ports should be in Active mode.
Which two features introduced in SNMPv2 provides the ability to retrieve large amounts of data in one request
- A . Get
- B . GetNext
- C . Set
- D . GetBulk
- E . Inform
How do servers connect to the network in a virtual environment?
- A . wireless to an access point that is physically connected to the network
- B . a cable connected to a physical switch on the network
- C . a virtual switch that links to an access point that is physically connected to the network
- D . a software switch on a hypervisor that is physically connected to the network
DRAG DROP

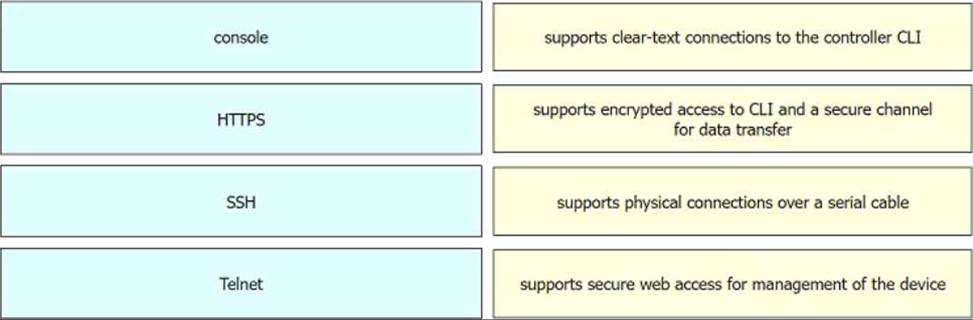

Drag and drop the management connection types from the left onto the definitions on the right.
