Practice Free 200-301 Exam Online Questions
DRAG DROP
Drag and drop the IPv6 address description from the left onto the IPv6 address types on the right. Not all options are used.

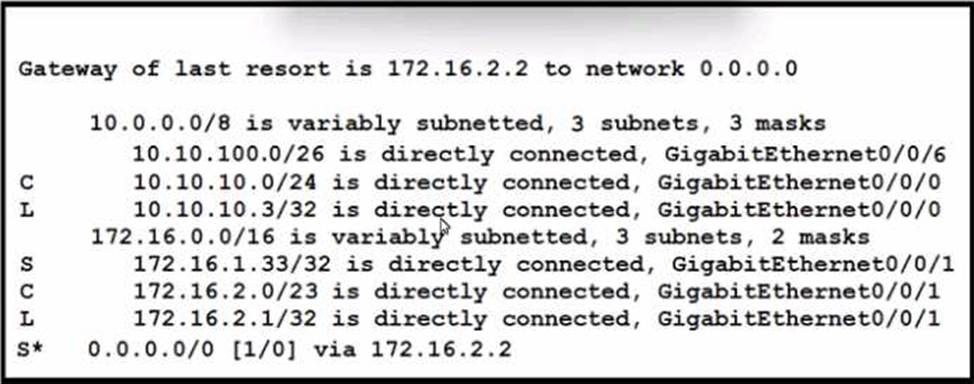

Refer to the exhibit.
A packet sourced from 10.10.10.32 is destined tot the Internet.
What is the administrative distance for the destination route?
- A . 0
- B . 1
- C . 2
- D . 32
Refer to the exhibit.
A packet sourced from 10.10.10.32 is destined tot the Internet.
What is the administrative distance for the destination route?
- A . 0
- B . 1
- C . 2
- D . 32
An engineer needs to add an old switch back into a network.
To prevent the switch from corrupting the VLAN database which action must be taken?
- A . Add the switch in the VTP domain with a lower revision number
- B . Add the switch with DTP set to dynamic desirable
- C . Add the switch in the VTP domain with a higher revision number
- D . Add the switch with DTP set to desirable
What are two characteristics of a public cloud Implementation? (Choose two.)
- A . It is owned and maintained by one party, but it is shared among multiple organizations.
- B . It enables an organization to fully customize how It deploys network resources.
- C . It provides services that are accessed over the Internet.
- D . It Is a data center on the public Internet that maintains cloud services for only one company.
- E . It supports network resources from a centralized third-party provider and privately-owned virtual resources
AC
Explanation:
Private cloud is cloud infrastructure operated solely for a single organization, whether managed internally or by a third party, and hosted either internally or externally.
Most public-cloud providers offer direct-connection services that allow customers to securely link their legacy data centers to their cloud-resident applications.
What role does a hypervisor provide for each virtual machine in server virtualization?
- A . infrastructure-as-a-service.
- B . Software-as-a-service
- C . control and distribution of physical resources
- D . services as a hardware controller.
C
Explanation:
The hypervisor creates and manages virtual machines on a host computer and allocates physical system resources to them.

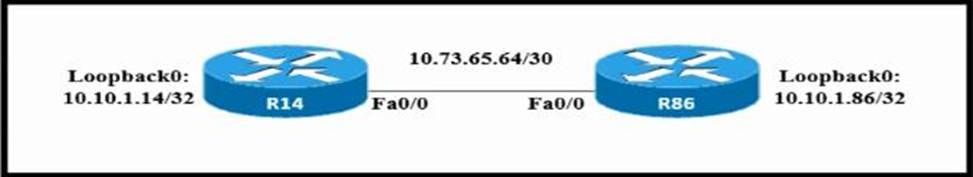

Refer to the exhibit.
Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency while acting as a central point for exchanging OSPF information between routers?

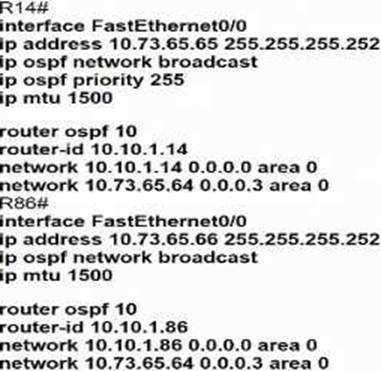

A)

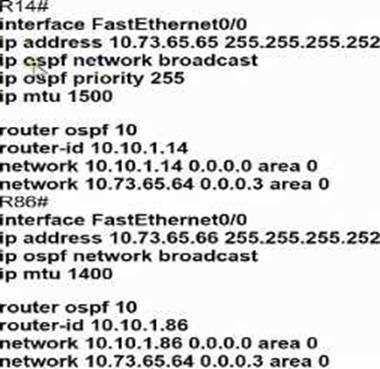

B)

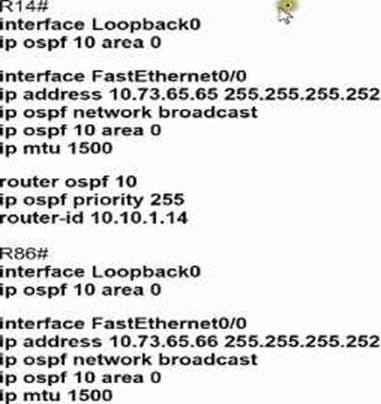

C)

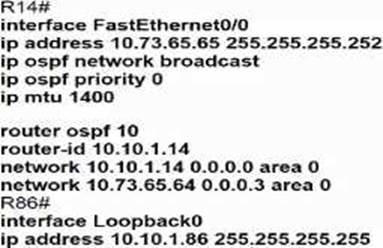

D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
What are two similarities between UTP Cat 5e and Cat 6a cabling? (Choose two.)
- A . Both operate at a frequency of 500 MHz.
- B . Both support runs of up to 55 meters.
- C . Both support runs of up to 100 meters.
- D . Both support speeds of at least 1 Gigabit.
- E . Both support speeds up to 10 Gigabit.
Which signal frequency appears 60 times per minute?
- A . 1 Hz signal
- B . 1 GHz signal
- C . 60 Hz signal
- D . 60 GHz signal
Which attribute does a router use to select the best path when two or more different routes to the same destination exist from two different routing protocols.
- A . dual algorithm
- B . metric
- C . administrative distance
- D . hop count
C
Explanation:
Administrative distance is the feature used by routers to select the best path when there are two or more different routes to the same destination from different routing protocols. Administrative distance defines the reliability of a routing protocol.
