Practice Free 200-301 Exam Online Questions
Which device performs stateful inspection of traffic?
- A . firewall
- B . switch
- C . access point
- D . wireless controller

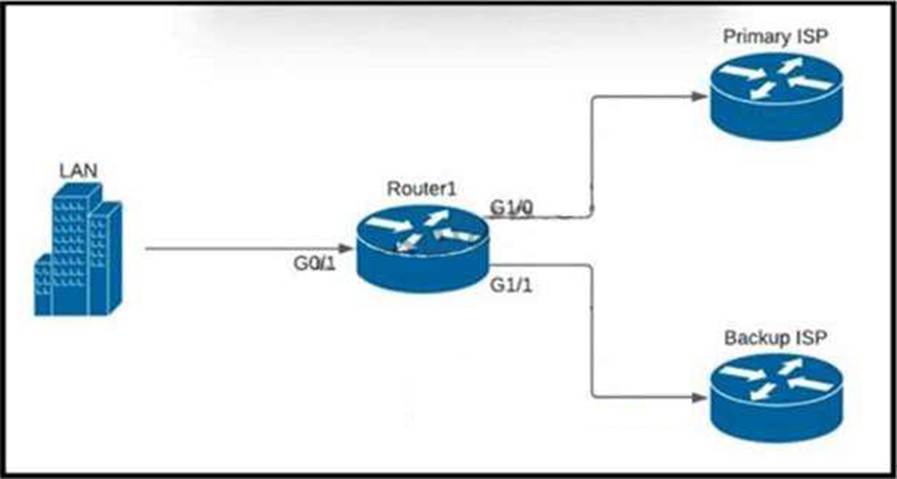

Refer to the exhibit.
A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down.
Which primary route configuration must be used?
- A . ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernetl/0
- B . ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked
- C . ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating
- D . ip route 0.0.0.0 0.0.0.0 192.168.0.2
Refer to the exhibit.
A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down.
Which primary route configuration must be used?
- A . ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernetl/0
- B . ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked
- C . ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating
- D . ip route 0.0.0.0 0.0.0.0 192.168.0.2

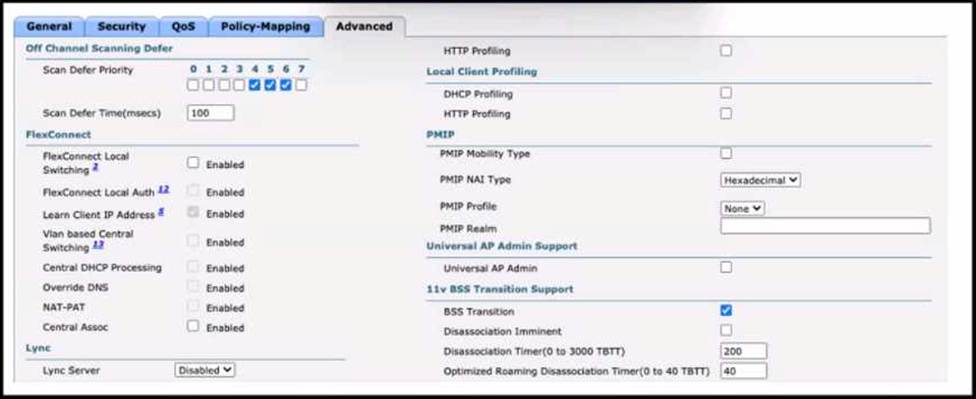

Refer to the exhibit.
An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC.
Which action must be taken to complete the request?
- A . Enable local HTTP profiling.
- B . Enable Disassociation Imminent.
- C . Enable FlexConnect Local Switching.
- D . Enable local DHCP Profiling.

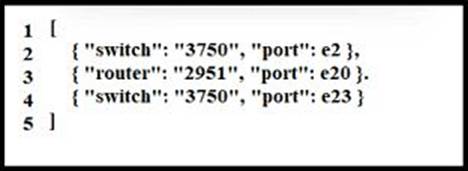

Refer to the exhibit.
What is represented by the word "switch’’ in line 2 of the JSON schema?
- A . array
- B . key
- C . value
- D . object
Which type of address is shared by routers in a HSRP implementation and used by hosts on the subnet as their default gateway address?
- A . multicast address
- B . loopback IP address
- C . virtual IP address
- D . broadcast address
Which type of address is shared by routers in a HSRP implementation and used by hosts on the subnet as their default gateway address?
- A . multicast address
- B . loopback IP address
- C . virtual IP address
- D . broadcast address
What are two reasons lo configure PortFast on a switch port attached to an end host? (Choose two.)
- A . to enable the number of MAC addresses learned on the port to l
- B . to protect the operation of the port from topology change processes
- C . to enable the pod to enter the forwarding state immediately when the host boots up
- D . to prevent the port from participating in Spanning Tree Protocol operations
- E . to block another switch or host from communicating through the port
What are two fundamentals of virtualization? (choose two)
- A . The environment must be configured with one hypervisor that serves solely as a network manager to monitor SNMP traffic
- B . It allows logical network devices to move traffic between virtual machines and the rest of the
physical network - C . It allows multiple operating systems and applications to run independently on one physical server.
- D . It allows a physical router to directly connect NICs from each virtual machine into the network
- E . It requires that some servers, virtual machines and network gear reside on the Internet

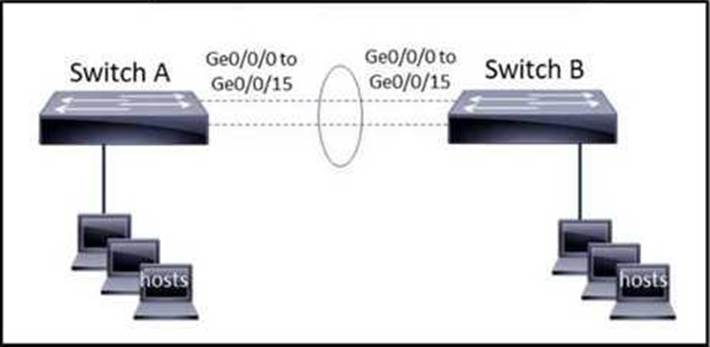

Refer to the exhibit.
The EtherChannel is configured with a speed of 1000 and duplex as full on both ends of channel group 1.
What is the next step to configure the channel on switch A to respond to but not initiate LACP communication?
- A . interface range gigabitethernet0/0/0-15 channel-group 1 mode on
- B . interface range gigabitethernet0/0/0-15 channel-group 1 mode desirable
- C . interface port-channel 1 channel-group 1 mode auto
- D . interface port-channel 1 channel-group 1 mode passive
