Practice Free 200-301 Exam Online Questions
Which 802.11 frame type is Association Response?
- A . management
- B . control
- C . action
- D . protected frame
Which CRUD operation corresponds to the HTTP GET method?
- A . read
- B . update
- C . create
- D . delete
A
Explanation:
GET: This method retrieves the information identified by the request URI. In the context of the RESTful web services, this method is used to retrieve resources. This is the method used for read operations (the R in CRUD).
https://hub.packtpub.com/crud-operations-rest/
R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?
- A . IS-IS
- B . RIP
- C . Internal EIGRP
- D . OSPF
C
Explanation:

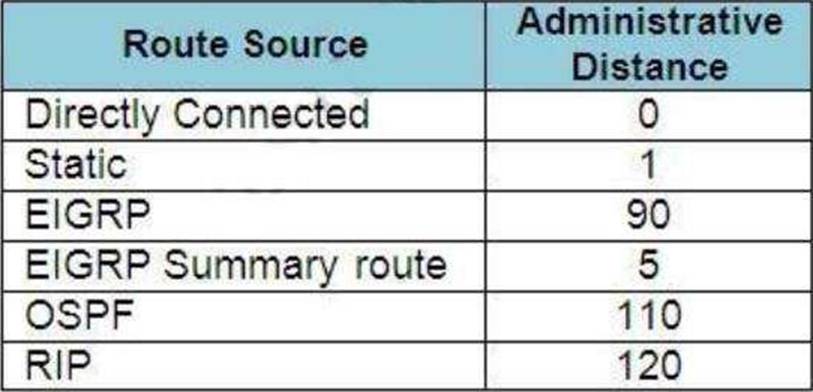

With the same route (prefix), the router will choose the routing protocol with lowest Administrative Distance (AD) to install into the routing table. The AD of Internal EIGRP (90) is lowest so it would be chosen. The table below lists the ADs of popular routing protocols.
Note: The AD of IS-IS is 115. The “EIGRP” in the table above is “Internal EIGRP”. The AD of “External EIGRP” is 170. An EIGRP external route is a route that was redistributed into EIGRP.

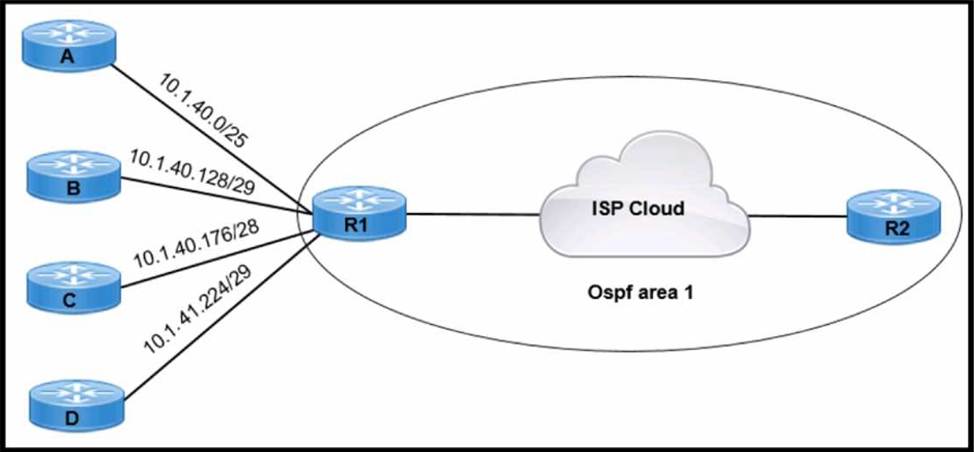

Refer to the exhibit.
Router R1 receives static routing updates from routers A. B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1.
Which nary address must be advertised in OSPF?
- A . 10.1.40.0/25
- B . 10.1.40.0/24
- C . 10.1.40.0/23
- D . 10.1.41.0/25
Refer to the exhibit.
Router R1 receives static routing updates from routers A. B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1.
Which nary address must be advertised in OSPF?
- A . 10.1.40.0/25
- B . 10.1.40.0/24
- C . 10.1.40.0/23
- D . 10.1.41.0/25
Refer to the exhibit.
Router R1 receives static routing updates from routers A. B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1.
Which nary address must be advertised in OSPF?
- A . 10.1.40.0/25
- B . 10.1.40.0/24
- C . 10.1.40.0/23
- D . 10.1.41.0/25
Refer to the exhibit.
Router R1 receives static routing updates from routers A. B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1.
Which nary address must be advertised in OSPF?
- A . 10.1.40.0/25
- B . 10.1.40.0/24
- C . 10.1.40.0/23
- D . 10.1.41.0/25
Which mechanism allows WPA3 to provide a higher degree of security than its predecessors?
- A . special-character support in preshared Keys
- B . SAE password-based key exchange
- C . automatic device pairing
- D . certificate-based authentication
What is the purpose of configuring different levels of syslog for different devices on the network?
- A . to rate-limit messages for different seventy levels from each device
- B . to set the severity of syslog messages from each device
- C . to identify the source from which each syslog message originated
- D . to control the number of syslog messages from different devices that are stored locally
Several new coverage cells are required to improve the Wi-Fi network of an organization.
Which two standard designs are recommended? (Choose two.)
- A . 5GHz provides increased network capacity with up to 23 nonoveriapping channels.
- B . For maximum throughput, the WLC is configured to dynamically set adjacent access points to the same channel.
- C . 5GHz channel selection requires an autonomous access point.
- D . Adjacent cells with overlapping channels use a repeater access point.
- E . Cells that overlap one another are configured to use nonoveriapping channels.
