Practice Free 200-301 Exam Online Questions
DRAG DROP

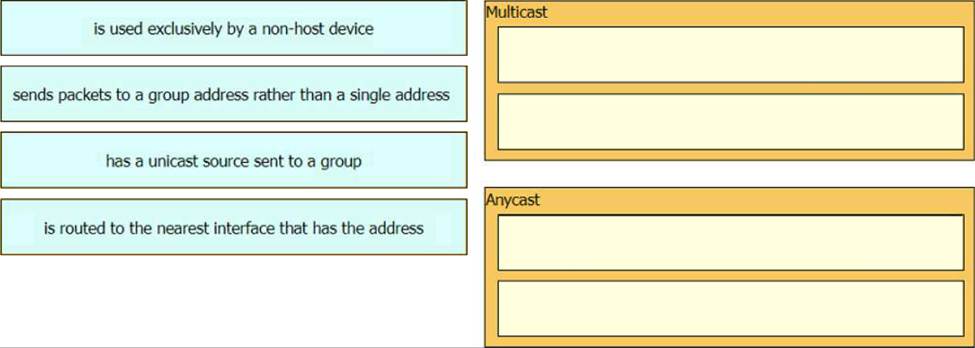

Drag and drop the characteristic from the left onto the IPv6 address type on the right.
Refer to the exhibit.
What action establishes the OSPF neighbor relationship without forming an adjacency?
- A . modify hello interval
- B . modify process ID
- C . modify priority
- D . modify network type

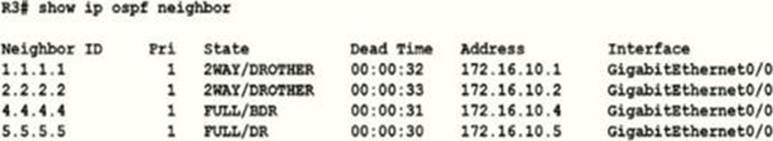

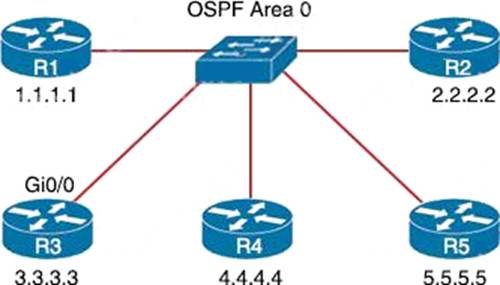

Refer to the exhibit.
R5 is the current DR on the network, and R4 is the BDR. Their interfaces are flapping, so a network engineer wants the OSPF network to elect a different DR and BDR.
Which set of configurations must the engineer implement?
- A . R4(config)#interface gi0/0
R4(config-if)#ip ospf priority 20
R5(config)#interface gi0/0
R5(config-if)#ip ospf priority 10 - B . R2(config)#interface gi0/0
R2(config-if)#ip ospf priority 259
R3(config)#interface gi0/0
R3(config-if)#ip ospf priority 256 - C . R5(config)#interface gi0/0
R5(config-if)#ip ospf priority 120
R4(config)#interface gi0/0
R4(config-if)#ip ospf priority 110 - D . R3(config)#interface gi0/0
R3(config-if)#ip ospf priority 255
R2(config)#interface gi0/0
R2(config-if)#ip ospf priority 240
A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded.
Which command must be configured to increment the security-violation count and forward an SNMP trap?
- A . switchport port-security violation access
- B . switchport port-security violation protect
- C . switchport port-security violation restrict
- D . switchport port-security violation shutdown
C
Explanation:
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.html
Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?
- A . global unicast address
- B . anycast address
- C . multicast address
- D . link-local address
Which advantage does the network assurance capability of Cisco DNA Center provide over traditional campus management?
- A . Cisco DNA Center correlates information from different management protocols to obtain insights, and traditional campus management requires manual analysis.
- B . Cisco DNA Center handles management tasks at the controller to reduce the load on infrastructure devices, and traditional campus management uses the data backbone.
- C . Cisco DNA Center leverages YANG and NETCONF to assess the status of fabric and nonfabric devices, and traditional campus management uses CLI exclusively.
- D . Cisco DNA Center automatically compares security postures among network devices, and traditional campus management needs manual comparisons.
What is a function of MAC address learning?
- A . It is enabled by default on all VLANs and interfaces
- B . It increases the potential for MAC address flooding.
- C . It is disabled by default on all interfaces connected to trunks
- D . lt increases security on the management VLAN
Which security program element involves installing badge readers on data-center doors to allow workers to enter and exit based on their job roles?
- A . role-based access control
- B . biometrics
- C . multifactor authentication
- D . physical access control
DRAG DROP

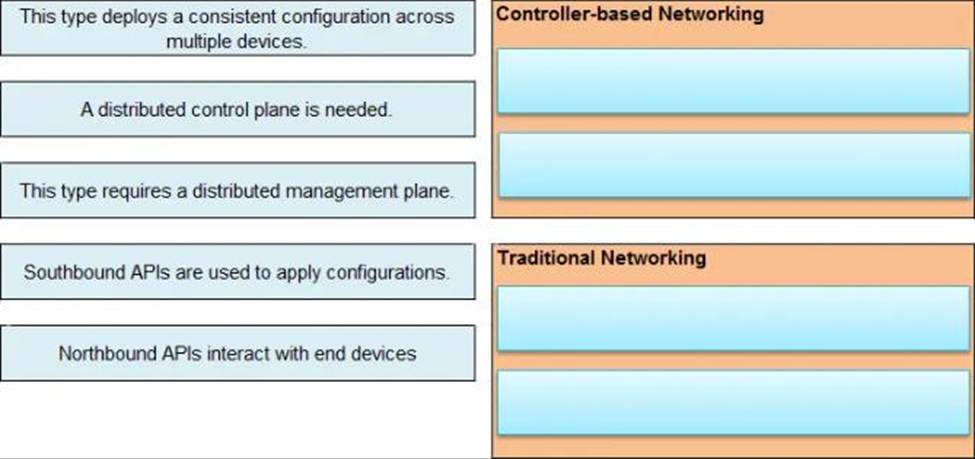

Drag and drop the statements about networking from the left onto the corresponding networking types on the right. Not all statements are used.
C This type deploys a consistent configuration across multiple devices.
C Southbound APIs are used to apply configurations.
Traditional Networking :
C A distributed control plane is needed.
C This type requires a distributed management plane.

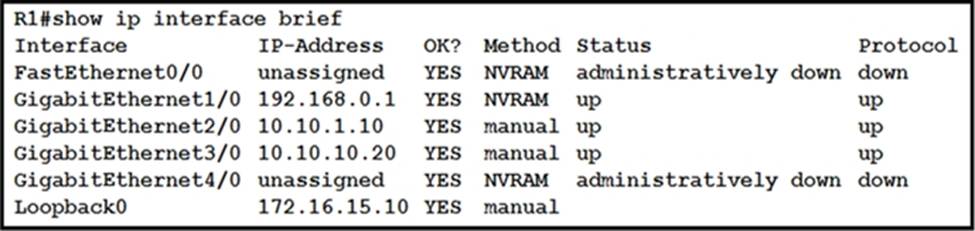

Refer to the exhibit.
What does router R1 use as its OSPF router-ID?
- A . 10.10.1.10
- B . 10.10.10.20
- C . 172.16.15.10
- D . 192.168.0.1
C
Explanation:
OSPF uses the following criteria to select the router ID:
