Practice Free 200-301 Exam Online Questions
Which capability does TFTP provide?
- A . loads configuration files on systems without data storage devices
- B . provides authentication for data communications over a private data network
- C . provides encryption mechanisms for file transfer across a WAN
- D . provides secure file access within the LAN
A
Explanation:
TFTP (Trivial File Transfer Protocol) is a simple file transfer protocol that is often used to transfer configuration files or firmware to network devices, such as routers or switches, during the boot process. TFTP is lightweight and lacks advanced features like authentication or encryption, making it suitable for basic file transfer operations in situations where security is not a primary concern. Therefore, option A accurately describes one of the primary capabilities of TFTP. It is commonly used to load configuration files onto systems, particularly those without extensive data storage devices, during the initialization or configuration process.
Which MAC address is recognized as a VRRP virtual address?
- A . 0000.5E00.010a
- B . 0005.3711.0975
- C . 0000.0C07.AC99
- D . 0007.C070/AB01
A
Explanation:
With VRRP, the virtual router’s MAC address is 0000.5E00.01xx, in which xx is the VRRP group.

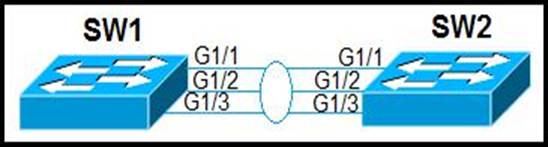

Refer to the exhibit.
Which configuration establishes a Layer 2 LACP EtherChannel when applied to both switches?
- A . Interface range G1/1 C 1/3 switchport mode trunk channel-group 1 mode active no shutdown
- B . Interface range G1/1 C 1/3 switchport mode access channel-group 1 mode passive no shutdown
- C . Interface range G1/1 C 1/3 switchport mode trunk channel-group 1 mode desirable no shutdown
- D . Interface range G1/1 C 1/3 switchport mode access channel-group 1 mode on no shutdown
How do TCP and UDP differ in the way they guarantee packet delivery?
- A . TCP uses checksum, acknowledgement, and retransmissions, and UDP uses checksums only.
- B . TCP uses two-dimensional parity checks, checksums, and cyclic redundancy checks and UDP uses retransmissions only.
- C . TCP uses checksum, parity checks, and retransmissions, and UDP uses acknowledgements only.
- D . TCP uses retransmissions, acknowledgement and parity checks and UDP uses cyclic redundancy checks only.

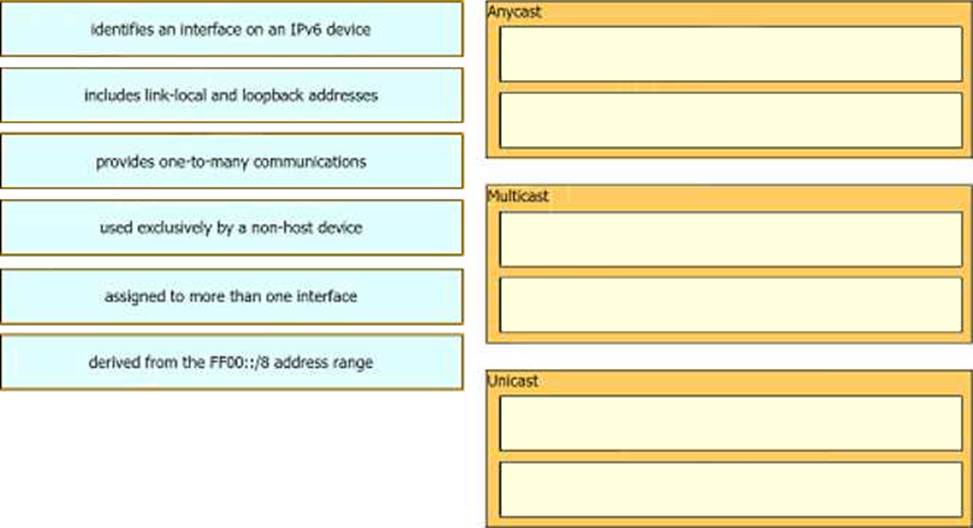

DRAG DROP
Drag and drop the characteristic from the left onto the IPv6 address type on the right.
DRAG DROP
Drag and drop the characteristic from the left onto the IPv6 address type on the right.

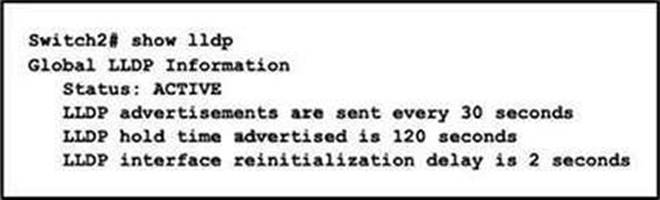

Refer to the exhibit.
A network engineer must update the configuring on switch2 so that it sends LLDP packets.
- A . Switch2(config)#lldp timer 60
Switch2(config)#lldp holdtime 180 - B . Switch2(config)#lldp timer 60
Switch2(config)#lldp tlv-select 180 - C . Switch2(config)#lldp timer 1
Switch2(config)#lldp holdtime 3 - D . Switch2(config)#lldp timer 1
Switch2(config)#lldp tlv-select 3
Which physical component is distributed among multiple virtual machines running on the same hypervisor?
- A . external storage
- B . hardware resources
- C . network interfaces
- D . backplane network

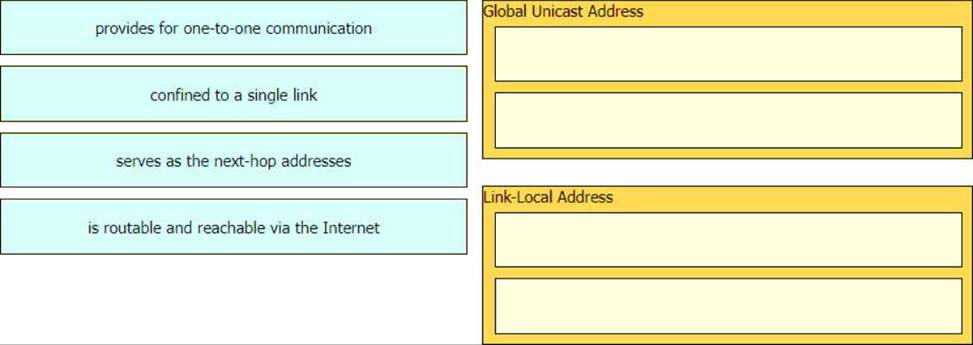

DRAG DROP
Drag and drop the IPv6 address details from the left onto the corresponding types on the right.

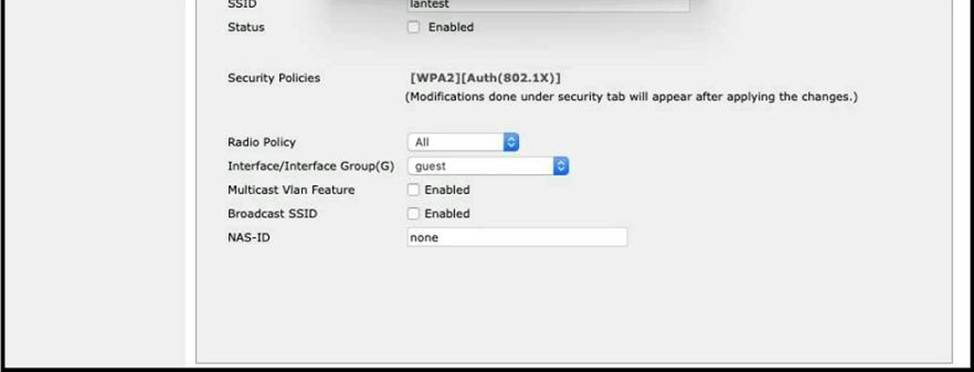

Refer to the exhibit.
A Cisco engineer creates a new WLAN called lantest.
Which two actions must be performed so that only high-speed 2.4-Ghz clients connect? (Choose two.)
- A . Enable the Broadcast SSID option
- B . Enable the Status option.
- C . Set the Radio Policy option to 802 11g Only.
- D . Set the Radio Policy option to 802.11a Only.
- E . Set the Interface/Interface Group(G) to an interface other than guest
