Practice Free 200-301 Exam Online Questions
A switch is a forwarding a frame out of an interfaces except the interface that received the frame.
What is the technical term for this process?
- A . ARP
- B . CDP
- C . flooding
- D . multicast
Which group of channels in the 802.1ib/g/n/ac/ax 2.4 GHz frequency Bands are nonoverlapping channels?
- A . channels 1, 5, and 10
- B . channels 1,6, and 11
- C . channels 1,5, and 11
- D . channels 1,6, and 10
DRAG DROP

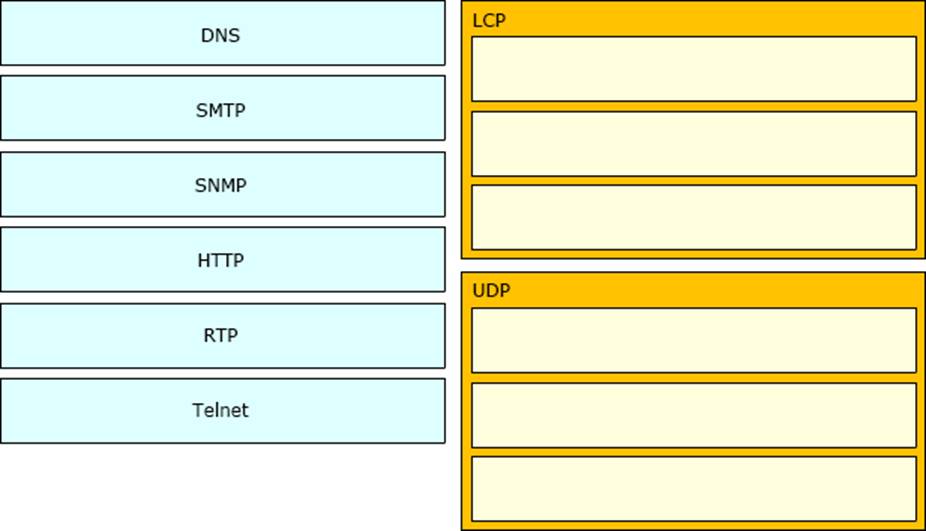

Drag and drop the TCP/IP protocols from the left onto the transmission protocols on the right
What is the primary purpose of private address space?
- A . conserve globally unique address space
- B . simplify the addressing in the network
- C . limit the number of nodes reachable via the Internet
- D . reduce network complexity
DRAG DROP

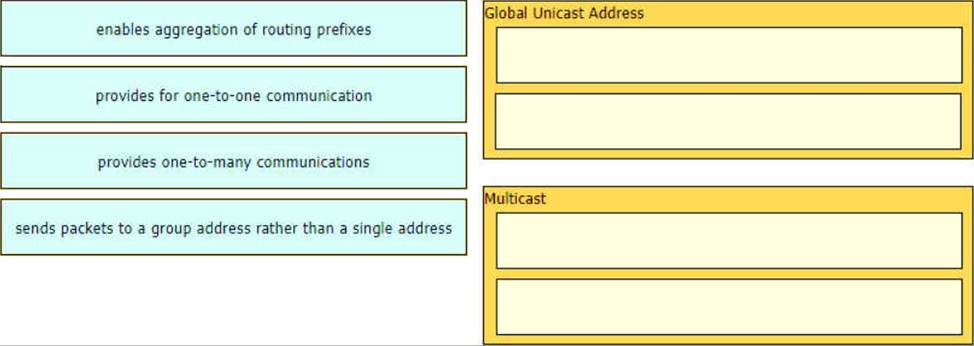

Drag and drop the characteristic from the left onto the IPv6 address type on the right.
Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?
- A . Ansible
- B . Python
- C . Puppet
- D . Chef

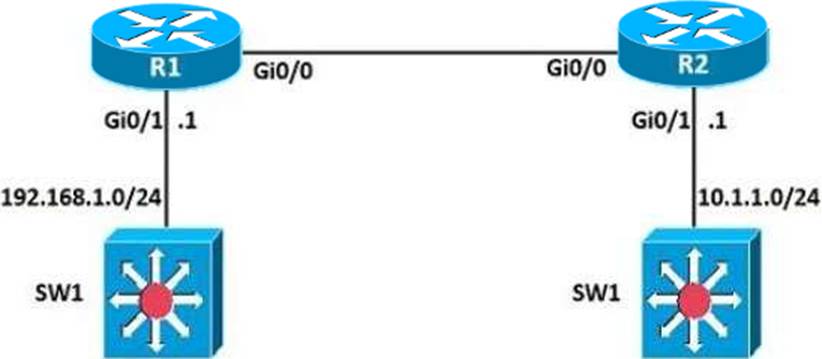

Refer to the exhibit.
A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs.

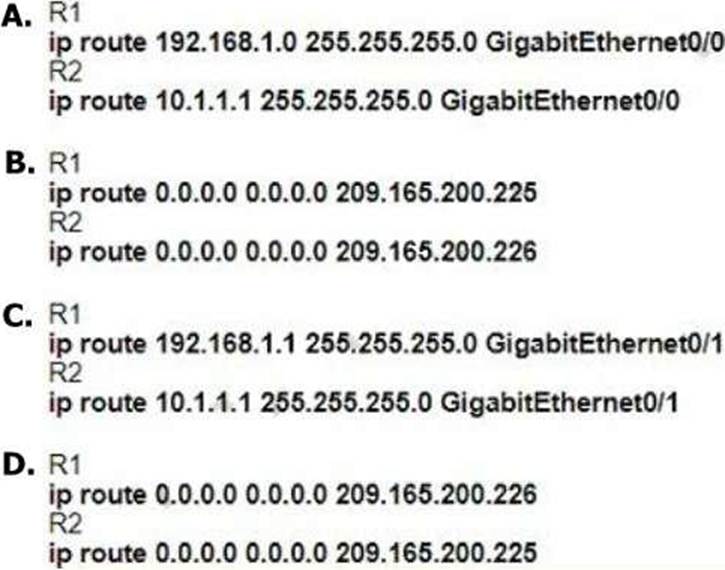

Which command set configures the IP connectivity between devices located on both LANs in each site?
- A . Option A
- B . Option B
- C . Option C
- D . Option D
A network analyst is tasked with configuring the date and time on a router using EXEC mode. The date must be set to January 1. 2020 and the time must be set to 12:00 am.
Which command should be used?
- A . clock summer-time recurring
- B . clock time zone
- C . clock summer-time date
- D . clock set
Which access layer threat-mitigation technique provides security based on identity?
- A . Dynamic ARP Inspection
- B . using a non-default native VLAN
- C . 802.1x
- D . DHCP snooping

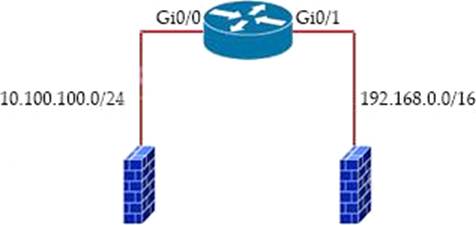

Refer to the exhibit.
An access list is required to permit traffic from any host on interface G0/0 and deny traffic from interface G/0/1.
Which access list must be applied?
- A . ip access-list standard 99
permit 10.100.100.0 0.0.0.255
deny 192.168.0.0 0.0.255.255 - B . ip access-list standard 99
permit 10.100.100.0 0.0.0.255
deny 192.168.0.0 0.255.255.255 - C . ip access-list standard 100
permit 10.100.100.0 0.0.0.255
deny 192.168.0.0 0.255.255.255 - D . ip access-list standard 199
permit 10.100.100.0 0.0.0.255
deny 192.168.0.0 0.0.255.255
