Practice Free 200-301 Exam Online Questions
What is a reason to implement IPv4 private addressing?
- A . Reduce the risk of a network security breach
- B . Comply with PCI regulations
- C . Comply with local law
- D . Reduce the size of the forwarding table on network routers
Refer to the exhibit.
Router R14 is in the process of being configured.
Which configuration must be used to establish a host route to PC 10?
- A . ip route 10.80.65.10 255.255.255.254 10.80.65.1
- B . ip route 10.8065.10 255.255.255.255 10.73.65.66
- C . ip route 1073.65.65 255.0.0.0 10.80.65.10
- D . ip route 10.73.65.66 0.0.0.255 10.80.65.10
Refer to the exhibit.
Router R14 is in the process of being configured.
Which configuration must be used to establish a host route to PC 10?
- A . ip route 10.80.65.10 255.255.255.254 10.80.65.1
- B . ip route 10.8065.10 255.255.255.255 10.73.65.66
- C . ip route 1073.65.65 255.0.0.0 10.80.65.10
- D . ip route 10.73.65.66 0.0.0.255 10.80.65.10
What are two disadvantages of a full-mesh topology? (Choose two.)
- A . It needs a high MTU between sites.
- B . It has a high implementation cost.
- C . It must have point-to-point communication.
- D . It requires complex configuration.
- E . It works only with BGP between sites.
DRAG DROP

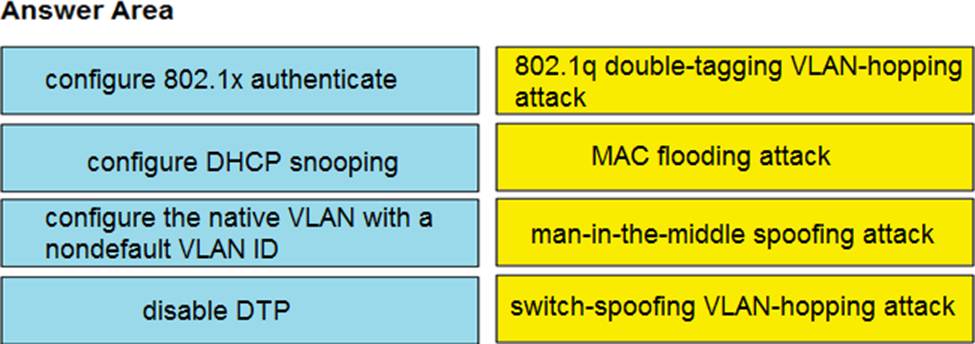

Drag and drop the attack-mitigation techniques from the left onto the Types of attack that they mitigate on the right.
How do traditional campus device management and Cisco DNA Center device management differ in regards to deployment?
- A . Cisco DNA Center device management can deploy a network more quickly than traditional campus device management
- B . Traditional campus device management allows a network to scale more quickly than with Cisco DNA Center device management
- C . Cisco DNA Center device management can be implemented at a lower cost than most traditional campus device management options
- D . Traditional campus device management schemes can typically deploy patches and updates more quickly than Cisco DNA Center device management
DRAG DROP

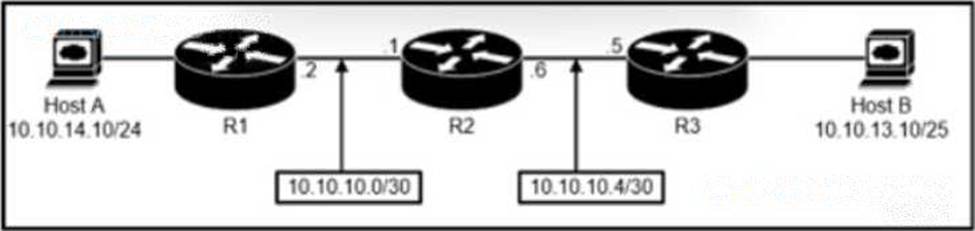

An engineer must configure a static network route between two networks so that host A communicates with host B.
Drag and drop the commands from the left onto the routers where they must be configured on the right. Not all commands are used.
Explanation:
3-R1
2&4CR2
5CR3
Refer to the exhibit.
IPv6 is being Implemented within the enterprise. The command Ipv6 unlcast-routing is configure. Interlace GlgO/0 on R1 must be configured to provide a dynamic assignment using the assigned IPv6 block.
Which command accomplishes this task?
- A . ipv6 address 2001:DB8:FFFF:FCF3::1/64
- B . ipv6 address autoconfig 2001:DB8:FFFF:FCF2::/64
- C . ipv6 address 2001:DB8:FFFF:FCF3::/64 eui-64
- D . ipv6 address 2001:DB8:FFFF:FCF3::/64 link-local
Which two VPN technologies are recommended by Cisco for multiple branch offices and large-scale deployments? (Choose two.)
- A . site-to-site VPN
- B . IDMVPN
- C . IGETVPN
- D . IPsec remote access
- E . clientless VPN
What is a link-local all-nodes IPv6 multicast address?
- A . ff02:0:0:0:0:0:0:1
- B . 2004:31c:73d9:683e:255::
- C . fffe:034:0dd:45d6:789e::
- D . fe80:4433:034:0dd::2
