Practice Free 200-301 Exam Online Questions
Refer to the exhibit.
ip arp inspection vlan 2-10
interface fastethernet 0/1
ip arp inspection trust
If the network environment is operating normally, which type of device must be connected to interface FastEthernet 0/1?
- A . DHCP client
- B . access point
- C . router
- D . PC
Refer to the exhibit.
ip arp inspection vlan 2-10
interface fastethernet 0/1
ip arp inspection trust
If the network environment is operating normally, which type of device must be connected to interface FastEthernet 0/1?
- A . DHCP client
- B . access point
- C . router
- D . PC
Why implement VRRP?
- A . to provide end users with a virtual gateway in a multivendor network
- B . to leverage a weighting scheme to provide uninterrupted service
- C . to detect link failures without the overhead of Bidirectional Forwarding Detection
- D . to hand over to end users the autodiscovery of virtual gateways
How is noise defined in Wi-Fi?
- A . ratio of signal-to-noise rating supplied by the wireless device
- B . signals from other Wi-Fi networks that interfere with the local signal
- C . measured difference between the desired Wi-Fi signal and an interfering Wi-Fi signal
- D . any interference that is not Wi-Fi traffic that degrades the desired signal

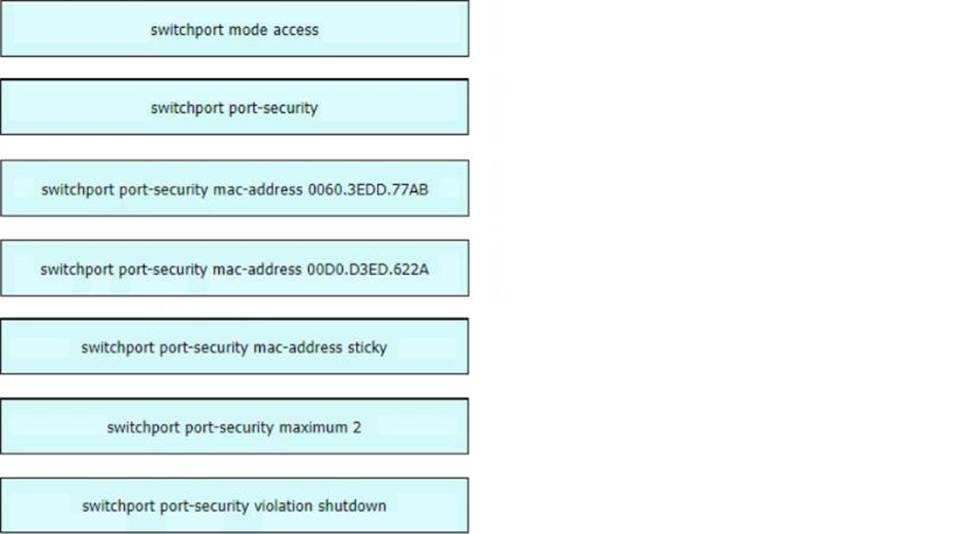

DRAG DROP
An engineer is tasked to configure a switch with port security to ensure devices that forward unicasts multicasts and broadcasts are unable to flood the port The port must be configured to permit only two random MAC addresses at a time.
Drag and drop the required configuration commands from the left onto the sequence on the right Not all commands are used.
Which enhancement is implemented in WPA3?
- A . applies 802.1x authentication
- B . usesTKIP
- C . employs PKI to identify access points
- D . protects against brute force attacks
Router A learns the same route from two different neighbors, one of the neighbor routers is an OSPF neighbor and the other is an EIGRP neighbor.
What is the administrative distance of the route that will be installed in the routing table?
- A . 20
- B . 90
- C . 110
- D . 115
B
Explanation:
The Administrative distance (AD) of EIGRP is 90 while the AD of OSPF is 110 so EIGRP route will be chosen to install into the routing table.

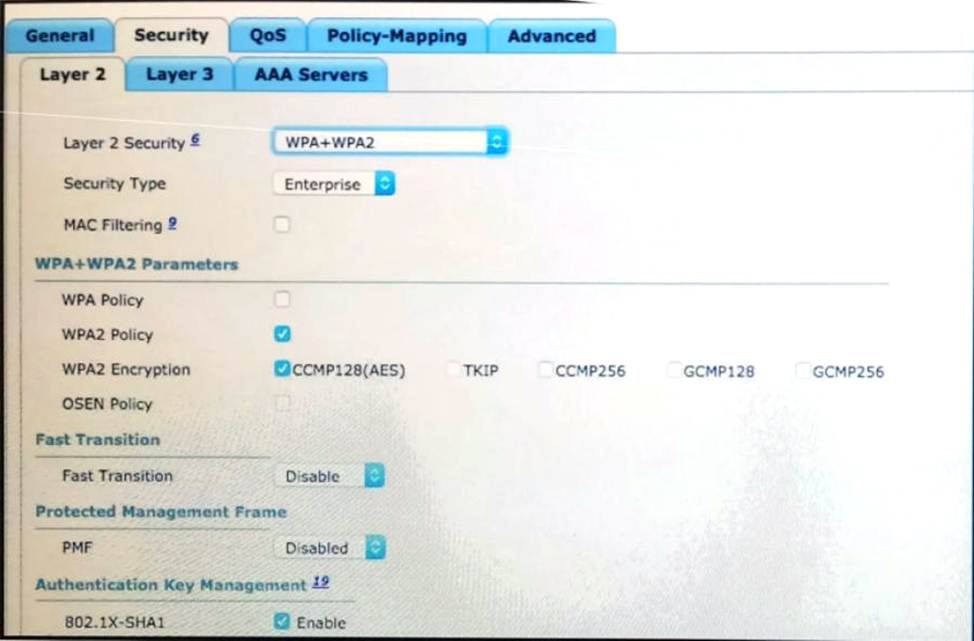

Refer to the exhibit.
What must be configured to enable 802.11w on the WLAN?
- A . Set PMF to Required.
- B . Enable MAC Filtering.
- C . Enable WPA Policy.
- D . Set Fast Transition to Enabled
What is a characteristic of spine-and-leaf architecture?
- A . Each device is separated by the same number of hops
- B . It provides variable latency
- C . It provides greater predictability on STP blocked ports.
- D . Each link between leaf switches allows for higher bandwidth.
What criteria is used first during the root port selection process?
- A . local port ID
- B . lowest path cost to the root bridge
- C . lowest neighbor’s bridge ID
- D . lowest neighbor’s port ID
